R语言可视化学习笔记之ggpubr包

作者简介Introduction

taoyan:伪码农,R语言爱好者,爱开源。

个人博客: https://ytlogos.github.io/

R语言学习笔记之聚类分析

Hadley Wickham创建的可视化包ggplot2可以流畅地进行优美的可视化,但是如果要通过ggplot2定制一套图形,尤其是适用于杂志期刊等出版物的图形,对于那些没有深入了解ggplot2的人来说就有点困难了,ggplot2的部分语法是很晦涩的。为此Alboukadel Kassambara创建了基于ggplot2的可视化包ggpubr用于绘制符合出版物要求的图形。

安装及加载ggpubr包

安装方式有两种:

  • 直接从CRAN安装:

install.packages("ggpubr")

  • 从GitHub上安装最新版本:
if(!require(devtools)) install.packages("devtools") devtools::install_github("kassambara/ggpubr")

安装完之后直接加载就行:

library(ggpubr)

ggpubr可绘制图形

ggpubr可绘制大部分我们常用的图形,下面一一介绍。

分布图(Distribution)

#构建数据集set.seed(1234)

df <- data.frame( sex=factor(rep(c("f", "M"), each=200)),weight=c(rnorm(200, 55), rnorm(200, 58)))

head(df)

## sex weight

## 1 f 53.79293

## 2 f 55.27743

## 3 f 56.08444

## 4 f 52.65430

## 5 f 55.42912

## 6 f 55.50606

密度分布图以及边际地毯线并添加平均值线

ggdensity(df, x="weight", add = "mean", rug = TRUE, color = "sex", fill = "sex",palette = c("#00AFBB", "#E7B800"))

带有均值线和边际地毯线的直方图

gghistogram(df, x="weight", add = "mean", rug = TRUE, color = "sex", fill = "sex",palette = c("#00AFBB", "#E7B800"))

箱线图与小提琴图

#加载数据集ToothGrowth

data("ToothGrowth")

df1 <- ToothGrowthhead(df1)

## len supp dose

## 1 4.2 VC 0.5

## 2 11.5 VC 0.5

## 3 7.3 VC 0.5

## 4 5.8 VC 0.5

## 5 6.4 VC 0.5

## 6 10.0 VC 0.5

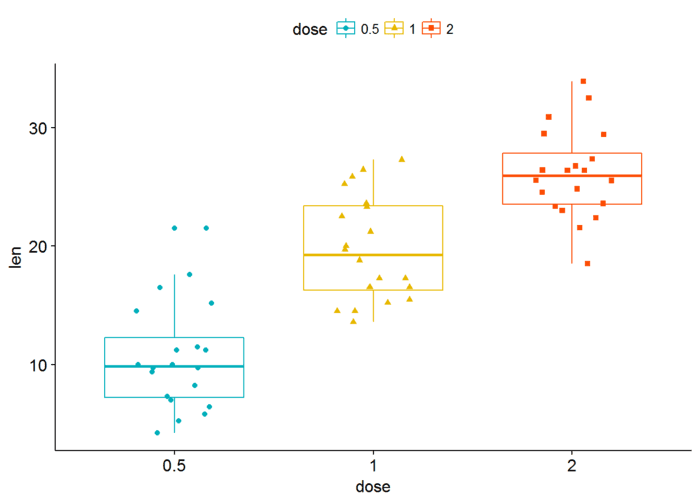

p <- ggboxplot(df1, x="dose", y="len", color = "dose",

palette = c("#00AFBB", "#E7B800", "#FC4E07"),

add = "jitter", shape="dose")#增加了jitter点,点shape由dose映射p

增加不同组间的p-value值,可以自定义需要标注的组间比较

my_comparisons <- list(c("0.5", "1"), c("1", "2"), c("0.5", "2"))p+stat_compare_means(comparisons = my_comparisons)+#不同组间的比较stat_compare_means(label.y=50)

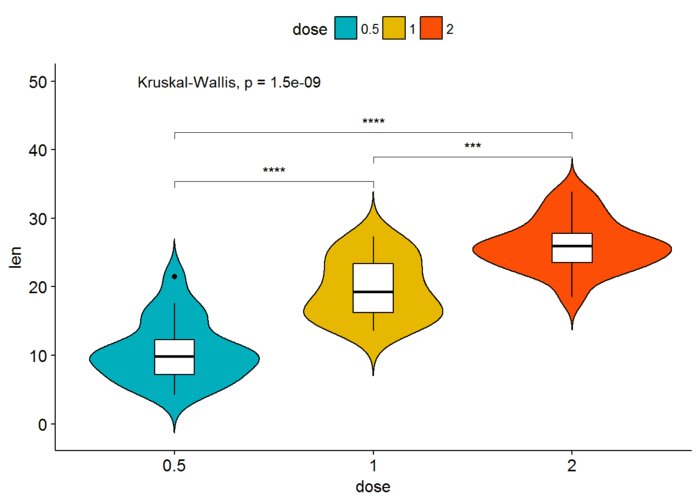

内有箱线图的小提琴图

ggviolin(df1, x="dose", y="len", fill = "dose",

palette = c("#00AFBB", "#E7B800", "#FC4E07"),

add = "boxplot", add.params = list(fill="white"))+

stat_compare_means(comparisons = my_comparisons, label =

"p.signif")+#label这里表示选择显著性标记(星号)

stat_compare_means(label.y = 50)

条形图

data("mtcars")

df2 <- mtcars

df2$cyl <- factor(df2$cyl)

df2$name <- rownames(df2)#添加一行name

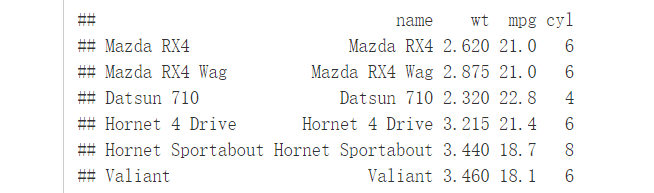

head(df2[, c("name", "wt", "mpg", "cyl")])

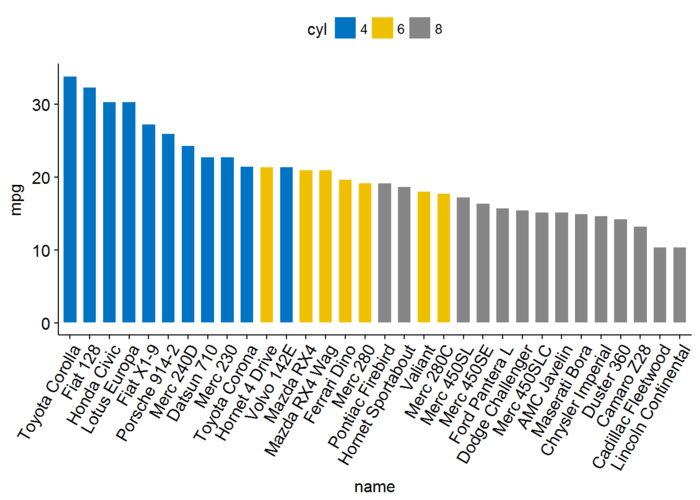

按从小到大顺序绘制条形图(不分组排序)

ggbarplot(df2, x="name", y="mpg", fill = "cyl", color = "white",

palette = "jco",#杂志jco的配色

sort.val = "desc",#下降排序

sort.by.groups=FALSE,#不按组排序

x.text.angle=60)

按组进行排序

ggbarplot(df2, x="name", y="mpg", fill = "cyl", color = "white",

palette = "jco",#杂志jco的配色

sort.val = "asc",#上升排序,区别于desc,具体看图演示

sort.by.groups=TRUE,#按组排序

x.text.angle=90)

偏差图

偏差图展示了与参考值之间的偏差

df2$mpg_z <- (df2$mpg-mean(df2$mpg))/sd(df2$mpg)

df2$mpg_grp <- factor(ifelse(df2$mpg_z<0, "low", "high"), levels = c("low", "high"))

head(df2[, c("name", "wt", "mpg", "mpg_grp", "cyl")])

绘制排序过的条形图

ggbarplot(df2, x="name", y="mpg_z", fill = "mpg_grp", color = "white",

palette = "jco", sort.val = "asc", sort.by.groups = FALSE, x.text.angle=60, ylab = "MPG z-score", xlab = FALSE, legend.title="MPG Group")

坐标轴变换

ggbarplot(df2, x="name", y="mpg_z", fill = "mpg_grp", color = "white",

palette = "jco", sort.val = "desc", sort.by.groups = FALSE,

x.text.angle=90, ylab = "MPG z-score", xlab = FALSE,

legend.title="MPG Group", rotate=TRUE, ggtheme = theme_minimal())

点图(Dot charts)

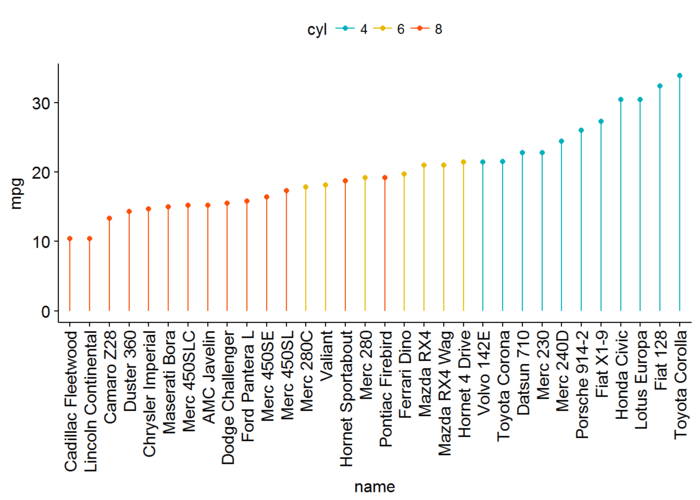

棒棒糖图(Lollipop chart)

棒棒图可以代替条形图展示数据

ggdotchart(df2, x="name", y="mpg", color = "cyl",

palette = c("#00AFBB", "#E7B800", "#FC4E07"), sorting = "ascending",

add = "segments", ggtheme = theme_pubr())

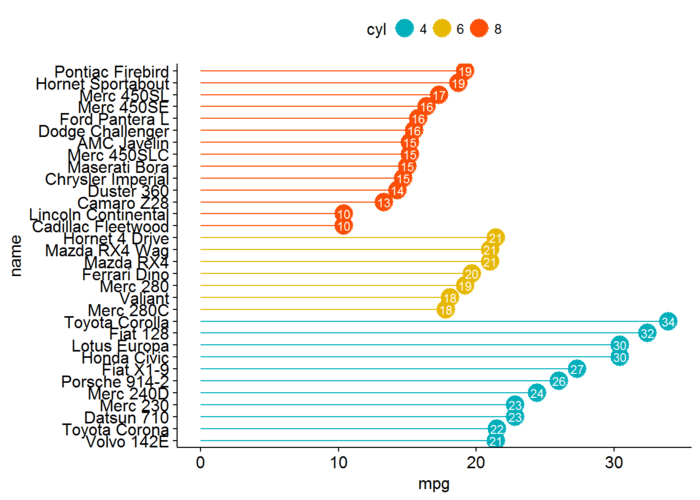

可以自设置各种参数

ggdotchart(df2, x="name", y="mpg", color = "cyl",

palette = c("#00AFBB", "#E7B800", "#FC4E07"), sorting = "descending",

add = "segments", rotate = TRUE, group = "cyl", dot.size = 6,

label = round(df2$mpg), font.label = list(color="white", size=9, vjust=0.5),

ggtheme = theme_pubr())

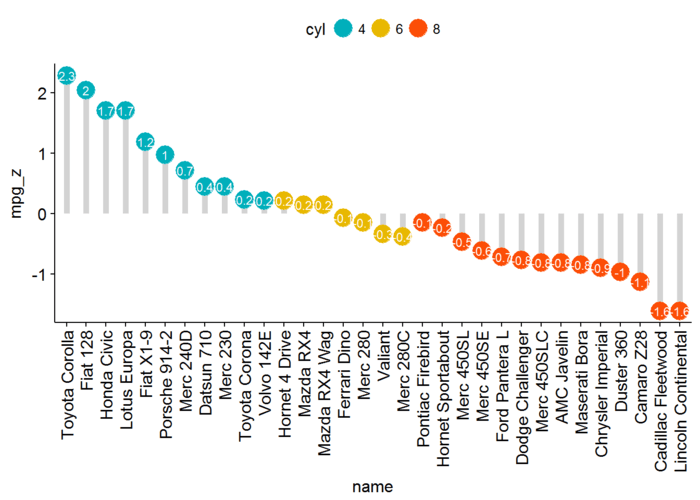

偏差图

ggdotchart(df2, x="name", y="mpg_z", color = "cyl",

palette = c("#00AFBB", "#E7B800", "#FC4E07"), sorting = "descending",

add = "segment", add.params = list(color="lightgray", size=2),

group = "cyl", dot.size = 6, label = round(df2$mpg_z, 1),

font.label = list(color="white", size=9, vjust=0.5),

ggtheme = theme_pubr())+ geom_line(yintercept=0, linetype=2, color="lightgray")

Cleveland点图

ggdotchart(df2, x="name", y="mpg", color = "cyl",

palette = c("#00AFBB", "#E7B800", "#FC4E07"),

sorting = "descending", rotate = TRUE, dot.size = 2, y.text.col=TRUE,

ggtheme = theme_pubr())+ theme_cleveland()

SessionInfo

sessionInfo()

## R version 3.4.0 (2017-04-21)

## Platform: x86_64-w64-mingw32/x64 (64-bit)

## Running under: Windows 8.1 x64 (build 9600)

##

## Matrix products: default

##

## locale:

## [1] LC_COLLATE=Chinese (Simplified)_China.936

## [2] LC_CTYPE=Chinese (Simplified)_China.936

## [3] LC_MONETARY=Chinese (Simplified)_China.936

## [4] LC_NUMERIC=C

## [5] LC_TIME=Chinese (Simplified)_China.936

##

## attached base packages:

## [1] stats graphics grDevices utils datasets methods base

##

## other attached packages:

## [1] ggpubr_0.1.3 magrittr_1.5 ggplot2_2.2.1

##

## loaded via a namespace (and not attached):

## [1] Rcpp_0.12.11 knitr_1.16 munsell_0.4.3 colorspace_1.3-2

## [5] R6_2.2.1 rlang_0.1.1 stringr_1.2.0 plyr_1.8.4

## [9] dplyr_0.5.0 tools_3.4.0 grid_3.4.0 gtable_0.2.0

## [13] DBI_0.6-1 htmltools_0.3.6 yaml_2.1.14 lazyeval_0.2.0

## [17] rprojroot_1.2 digest_0.6.12 assertthat_0.2.0 tibble_1.3.3

## [21] ggsignif_0.2.0 ggsci_2.4 purrr_0.2.2.2 evaluate_0.10

## [25] rmarkdown_1.5 labeling_0.3 stringi_1.1.5 compiler_3.4.0

## [29] scales_0.4.1 backports_1.1.0
